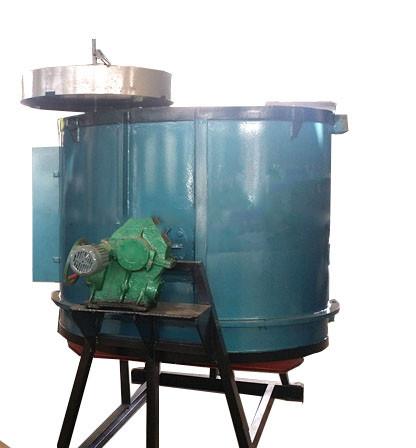

800℃ Aluminum Melting Resistance Crucible Furnace Mechnical Tilting
Aluminum melting resistance crucible furnace function :
This resistance crucible furnace is mainly used for aluminum melting in industry factory , it is our achievement after over years research and development according to different customers' requirement .
Aluminum melting resistance crucible furnace introduction:
1. Our resistance crucible furnace capacity from 10kg to 300kg .
2. The resistance crucible furnace rated temperature :800C ,max.temperature can up to 1200C
3. The resistance crucible furnace is matched with crucible (graphite or stainless steel )
3. All resistance crucible furnace ,we can offer you OEM service .
Aluminum melting resistance crucible furnace structure:
1. Resistance crucible furnace-- lining adopted super light & energy saving refractory brick and insulation brick.
2. Resistance crucible furnace--heating elements is Fe/Cr /Al alloy resistance wire .max temp. can reach to 1200C .
3. Resistance crucible furnace--The tilting system is mechanical device by of reduction gear .
Aluminum melting resistance crucible furnace structure technical parameter :
| Model | GR-20-8 |
| Loading capacity in theory | 80kg aluminum |
| Effective availability | 80% |
| Loading capacity | 10-70kg aluminum per batch |
| Inner chamber size | Dia. 300*430mm |
| Rated power | 20KW |
| Rated voltage | 3 phase 380V 50HZ |
| Rated temperature | 800℃ |
| Furnace shell | Made of 10mm structure steel |
| Furnace lining | Super light and energy saving refractory brick and insulation brick |
| Furnace crucible | graphite crucible (supply) |
| Tilting system | By reduction gear |
| Furnace lid | Yes |
| Heating element | Resistance wire |
| Power control cabinet | Supply |
| No-load heating time to max temp. from room temperature | Less than 2.5 hours |
The supply of technical information:
1. Aluminum melting resistance crucible furnace operation Manual
2. Aluminum melting resistance crucible furnace series drawings
3. Aluminum melting resistance crucible furnace electric control schematic drawing
Technical support and after sale service :
1. Prompt technical consultation and support will be offered .
2. Provide consumable parts with favorable price
3. A whole year warranty and lifetime maintenance .
Standard models of resistance crucible furnace for aluminum melting :
| aluminum melting resistance crucible furnace |
| Product model | crucible size | loading capacity (AL) | rated power | rated temperature |
| GR-20-8 | Φ300x430mm | 50-100kg | 20kw | 800°C |
| GR-60-8 | Φ500x600mm | 100-250kg | 60kw | 800°C |
| GR-75-8 | Φ500x870mm | 250-400kg | 75kw | 800°C |
Warranty
· Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
· This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
· Replacement will be shipped to you after photo or other evidence are provided and investigated
